Portable Handheld Hart 475 Field Communicator With Rechargeable Battery

Name: Portable Handheld Hart 475 Field Communicator With Rechargeable Battery
Brand: YunYi
Price: 175 USD

Quality Portable Handheld Hart 475 Field Communicator With Rechargeable Battery wholesale

Brand Name : YunYi

Model Number : Hart 475

Place of Origin : China

MOQ : 1

Price : USD175-USD389 PER PIECE

Payment Terms : D/A, D/P, T/T, Western Union

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 10DAYS

Packaging Details : Standard carton box

Communication signal connections : Dedicated cable, long 1.1m (3.6ft)

Display : 128 * 64 dot matrix LCD

Controls : Touch switch (four direction keys, 19 function keys, a p

Power supply : 4 1.2V rechargeable battery

Size : 180 * 80 * 54mm (L * W * H)

Weight : 700g

Name : Portable handheld hart 475 communicator

Contact Now

Description Portable handheld hart 475 communicator

The HART Communicator is a portable terminal that, when used in conjunction with the HART communication protocol-enabled instruments, allows for the setting, adjustment, and display of parameters. It facilitates monitoring of input/output values and self-diagnosis functions. Additionally, it enables the configuration of constant current output and zero adjustments.

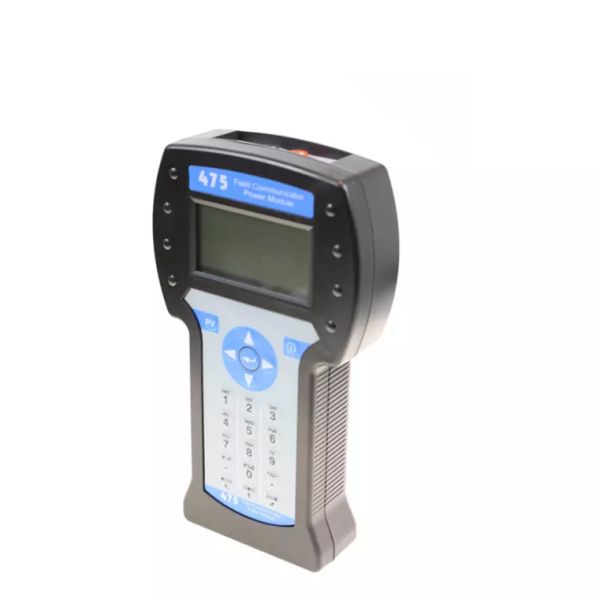

Detailed Images Portable handheld hart 475 communicator

Portable Handheld Hart 475 Field Communicator With Rechargeable Battery

Specification Portable handheld hart 475 communicator

Communication signal connections	Dedicated cable, long 1.1m (3.6ft)
Communication lines	Length: 1Km (0.62 mile) (0.75 ~ 1.25mm2) Load resistance: 250 ~ 600Ω Load Capacitance: 0.22uF less Load Inductance: 3.3mH or less Spacing and power cord: 15cm above (to avoid parallel lines)
Display	128 * 64 dot matrix LCD
Controls	Touch switch (four direction keys, 19 function keys, a power switch)
Power supply	4 1.2V rechargeable battery
Size	180 * 80 * 54mm (L * W * H)
Weight	700g

Features Portable handheld hart 475 communicator

1 Online monitoring and communication
2 During the communication, the modulated signal is not interrupted 4 ~ 20mA DC signal
3 HART communication protocol with the use of the instrument can be shared
4 HART Communicator can be used with HART communication protocol using all instruments
5 Easy to operate
6 Large display screen (4 lines of 18 characters), using Chinese display, the user looked at a glance, easy to set up and change
7 Information from diagnosis / protection functions
8 Self-check function
9 Formatting password protection
10 Low voltage alarm display
